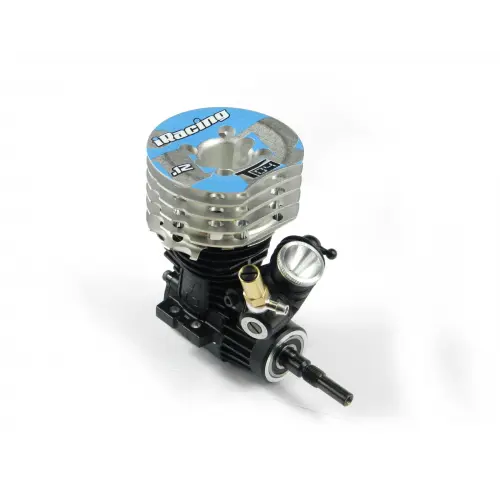

iRacing T04 (O.S. Speed T1204)

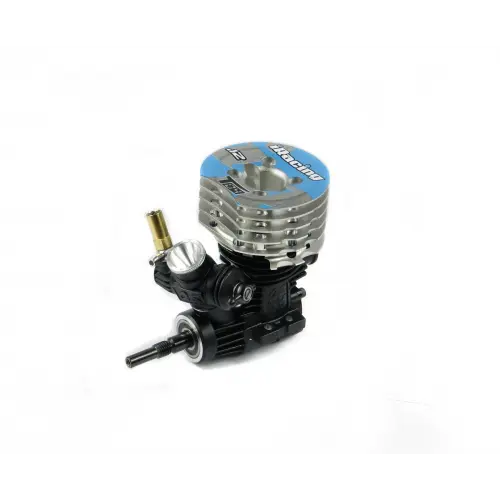

iRacing T04 3 Port Touring On/Road Ceramic DLC .12 Engine

This is the new iRacing T04 .12 Touring Engine, based on the renowned O.S. T1204 engine. This high-performance engine features a Long Life DLC treatment for exceptional durability.

FEATURES

Crankcase

The new crankcase improves engine balance, reducing vibrations caused by rotating and alternating masses. It includes a special "Long Life DLC" treatment for enhanced longevity.

Cooling head

A lightweight cooling head is precision-drilled to reduce weight and finished in a sleek silver color.

Rear Ball Bearing

Features a ceramic rear ball bearing of premium O.S. quality for improved performance and reliability.

3 Ports ABC Piston Sleeve

The 3-port piston sleeve is engineered to enhance torque in the low-to-mid power range while delivering sufficient power for high-traction tracks.

Crankshaft TURBO

The redesigned crankshaft counterweight ensures smooth power transitions from low to high RPM.

Inner Head

A silicon O-ring seals the inner head, preventing dust and debris from entering the engine, ensuring reliability and durability.

Technical Data

Displacement : 2.1 cc

Power: 1.75HP R.P.M. 35.000 Rpm

Bore : 13.67 mm

Stroke : 14.30 mm

Ports : 3

Crankshaft :  12.0 mm Turbo Tuned

Carburettor :  5.5mm metal + reducer

Glow Plug : Turbo

Main Bearing : Ceramic
