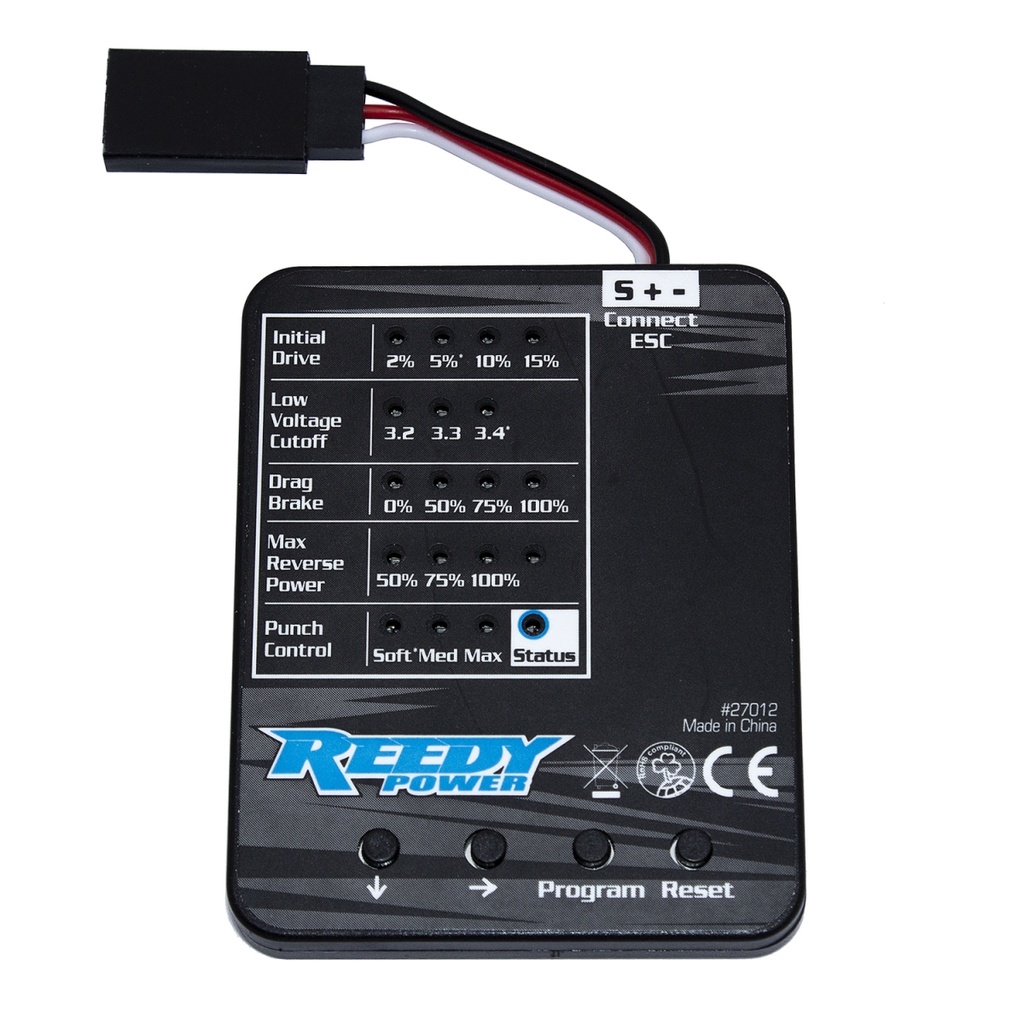

Associated 27034 Reedy SC480X Program Card
Reedy SC480X Program CardThe pre-programmed default ESC settings work very well in most situations but if you want access to additional settings for fine-tuning you can do so using optional Program Card (ASC27034). The following settings can be changed using the Program Card: Initial Drive: Throttle applied the moment the trigger is moved from the neutral position to the throttle range. Low-Voltage Cutoff: The cell voltage at which the ESC will shut off to protect the battery. Drag Brake: The brake force applied when the throttle trigger is returned to the neutral position. Max Reverse Power: The maximum reverse speed allowed relative to the forward speed. Punch Control: The aggressiveness of the application of throttle. HEADER: Setting / ValueInitial Drive: 2% 5%* 10% 15%Low Voltage Cutoff (V/cell): 3.2 3.3 3.4*Drag Brake: 0% 50% 75% 100%*Max Reverse Power: 50% 75%* 100%Punch Control: Soft* Medium StrongHEADER: *Default settingThis part fits the following other parts: ASC27011 - Reedy SC480X Brushed Crawler ESC.
Alternative Products
These other products might interest you
Specifications
| Brand | Tiimiin liittyv |
| manufacturer | Team associated |
