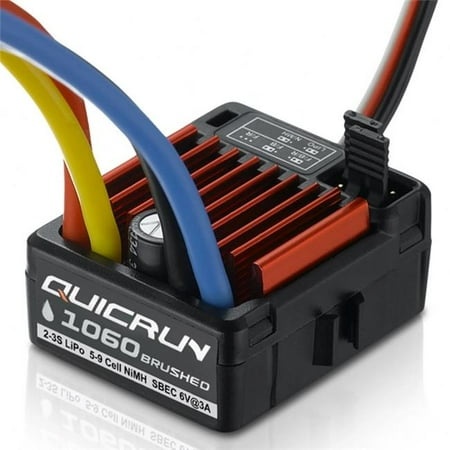

HW30120203 Hobbywing Quicrun 1060 1/10 Brushed ESC W/T-Plug HW30120203
QR1060 Suitable for 1:10 SPORT BOAT TANKERThis ESC is designed for 1/10th scale touring cars buggies short-course trucks monster trucks trucks crawlers and tanks. Water-proof and dust-proof suitable for all weather races. Small in size with a built-in capacitor module. Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward Br=Brake Rev=Reverse). Great current endurance capability. Great built-in BEC output capacity. Automatic throttle range calibration easy to use. ESC parameters are easy to set with jumpers. Multiple protections: Over Voltage ProtectionLow voltage cut-off protection for batteryOver-heating protectionThrottle signal loss protection. Risk-Free manufacturer s limited warranty available through Authorized Dealers in North AmericaFwd Cont. Current / Peak Current / Resistance: 60A/360A/0.001ORev Cont. Current / Peak Current / Resistance: 30A/180A/0.002OMotor Type Supported: Brushed MotorCar Applicable: 1:10 Touring Car Buggy Short Course Truck Monster Truggy Rock Crawler and TankSuitable BatteryBrushed Motor LimitFor 2S LiPo or 6 cell NiMh : 540 or 550 Size Motor: >12T Or RPM 18TOr RPM < 20000 @7.2VBEC Output: 2A/5V (Switch Mode)PWM Frequency: 1KHzSize/ Weight: 35.5(L)*32.18(W)*18(H) / 39gRunning Modes: Forward/Reverse/Brake Forward/Brake Forward/ReverseCooling Fan: No needInput Connection: T-Plug.
